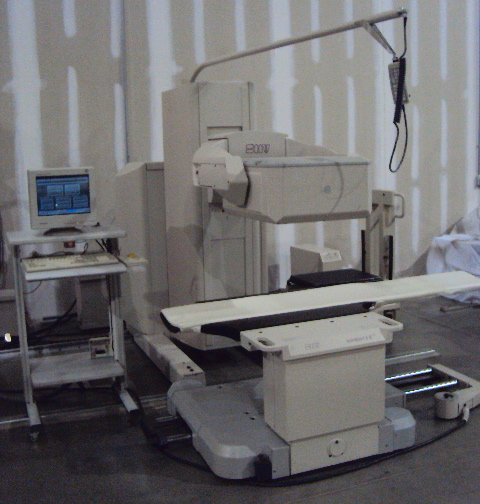

SMV/GE DSXi
The ultimate open gantry, large FOV, single head SPECT camera

The DSXi is the ultimate open gantry, large FOV, single head SPECT camera. It is a cost effective camera for cardiology, as well as general purpose nuclear imaging.

OPEN GANTRY

The DSXi combines single head simplicity, with an open gantry design. Patients can be easily imaged on hospital beds, stretchers, or sitting upright. Prone and supine cardiac SPECT is also accommodated. The open design, advanced robotics, and ScintibedTM table work in concert to provide complete multi-purpose versatility.

LONG-AXIS SPECT

The detector orientation of the DSXi is optimized in both whole body and SPECT imaging. For whole body, the long axis of the FOV is across the body while for SPECT, it is parallel to the patient’s torso. Long-axis SPECT orientation optimizes anatomical coverage for oncologic exams, routinely enabling imaging from the C-spine to the sacrum in a single SPECT acquisition.

INCLUDED IN THIS SYSTEM

• Camera Gantry and Acquisition Console
• 1 LEHR Collimator
• 1 MEAP Collimator
• Scintibed Patient table
• Cardiac Gate
• Choice of SMV Power Station or SEGAMI Mirage

ROOM REQUIREMENTS

• Room size: 17′ x 12′ recommended.
• Minimum Height: 8′
• Gantry weight: 4400 lbs with high energy collimators.
• Required power: 120 volt 30 amp (L5-30R).

AVAILABILITY

30 days
